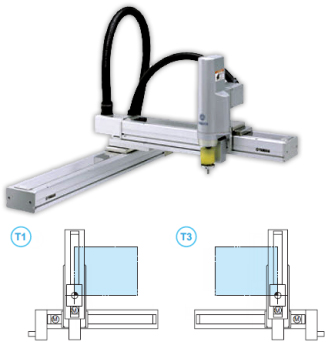

XY-X Series – Cleanroom
ตัวแทนจำหน่าย Yamaha robot
Industrial robots
Yamaha SCARA Robot
X Stroke: 1050mm
Y Stroke: 650mm
Z Stroke: 150mm
Max Payload (Z axis): 3Kg – 20Kg
Maximum Speed (X-axis): 1000mm/sec
Maximum Speed (Y-axis): 1000mm/sec
Maximum Speed (Y-axis): 500mm/sec – 1000mm/sec
| Cable Type | ZR Axis | X Axis Stroke | Y Axis Stroke | Z Axis Stroke | Maximum Payload | Max X Axis Speed | Max Y Axis Speed | Max Z Axis Speed | |
|---|---|---|---|---|---|---|---|---|---|
| SXYxC – 2 axis | Cable Duct | – | 1050 mm | 650 mm | – | 20.0 Kg | 1000 mm/sec | 1000 mm/sec | – |
| SXYxC – 3 axis | Cable Duct | ZSC12 | 1050 mm | 650 mm | 150 mm | 3.0 Kg | 1000 mm/sec | 1000 mm/sec | 1000 mm/sec |
| SXYxC – 3 axis | Cable Duct | ZSC6 | 1050 mm | 650 mm | 150 mm | 5.0 Kg | 1000 mm/sec | 1000 mm/sec | 500 mm/sec |
| SXYxC – 4 axis | Cable Duct | ZRSC12 | 1050 mm | 650 mm | 150 mm | 3.0 Kg | 1000 mm/sec | 1000 mm/sec | 1000 mm/sec |
| SXYxC – 4 axis | Cable Duct | ZRSC6 | 1050 mm | 650 mm | 150 mm | 5.0 Kg | 1000 mm/sec | 1000 mm/sec | 500 mm/sec |
