Standard Series - TKK Corporation


TSUBAKI RS Chain with Top Rollers
Standard Series

All base chain parts including the rollers use heat treated hardened steel.

Top rollers available in plastic or steel rollers.

[Expanded line-up]
Lambda rollers, with oil impregnated sintered bearings inside steel rollers



Base Chain Specifications

  • All parts are heat treated hardened steel.
  • Operating temperature range: -10ºC to 150ºC
  • Requires additional lubrication

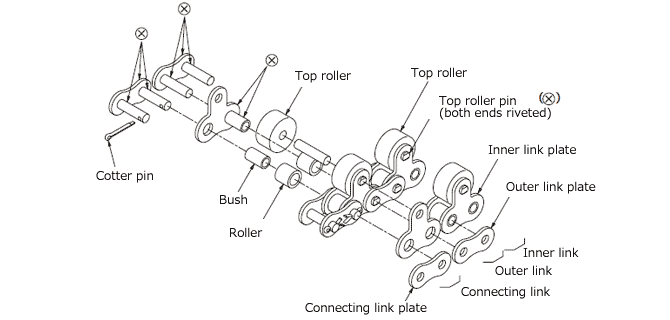

Structure

Reference Number System

RS40 1L TRP
(1)   (2) (3)

(1) Chain size
(2) Top roller spacing
(3) Top roller type: TR = Steel roller, TRP = Plastic roller

Dimensions/Specifications

Base roller Plastic top roller type Steel top roller type
Plastic roller Steel roller Lambda roller
Steel RS40-TRP RS40-TR RS40-TRLM
RS50-TRP RS50-TR RS50-TRLM
RS60-TRP RS60-TR RS60-TRLM
RS80-TRP RS80-TR RS80-TRLM
RS100-TRP RS100-TR
