Tsubaki Cam Clutch MR Series

MR Series Cam Clutch is for outer race overrun.

Standard

Torque Range (N·m{kgf·m})
9500{970} to 33800{3450}

Features

• The MR Series has excellent overrunning wear resistance as the cams lift off and do not contact the inner race when the outer race is overrunning.
• This series is intended for applications where the outer race is continuously overrunning at high-speed, so the engagement rotation speed is low.

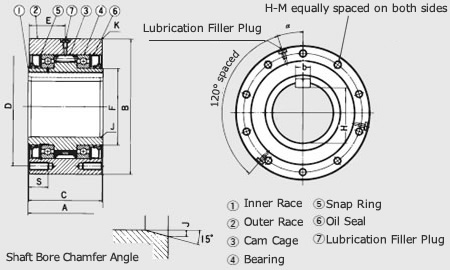

Structure

Reference Number System

The outer diameter dimensions are the same as those of the 6200 type bearings.
(Example: LD08 is 6208)
